All Royal Flush Toilets are built around a simple, no nonsense, water jet macerator. Reliability proven over three decades in a variety of Royal Flush models is demonstrated at trade shows by repeatedly flushing rags and quarters while spectators stare in disbelief.
All Royal Flush Toilets operate on the following principle. Pressurized water is accelerated through a jet to macerate and discharge the waste over a vented loop. There are no complicated mechanical sewage pumps to maintain in the toilet.
During operation pressurized water supplied by a shared water pressure system is controlled by the inlet valves to flush the toilet. The Royal Flush Bravo, Espresso and Aero integrate the proven and reliable water jet technology of the original Royal Flush combined with a modern valve and electronic control arrangement. The Multitouch system includes a timer module that controls the operation of two slow-close, water-hammer free solenoid valves located within the toilet. The timer module coordinates 3 different types of flushes into a single button. A single push of the switch on the toilet delivers a normal flush of 3 liters, two pushes and you’ll get a low water flush (pee flush) and with 3 pushes you’ll get an Ultra-Low Volume flush and no water in the bowl at the conclusion, this can be useful for service or rough seas.
This new arrangement makes for an easier installation, reduced noise when flushing, and better overall performance. less than 1 gallon per flush, it strikes a balance between water conservation and effective odor control.
The Royal Flush family of toilets continues the legacy of simple one touch operation, exclusive 5 year warranty, and the largest seating area and smallest footprint in the industry. Easy on the eyes, simple to install and innovative reliable technology make the new Royal Flush "The Bravo", complete with elongated bowl and extra in seating height for comfort, is an ideal choice for today’s modern vessel.
Works with both fresh and salt water and includes a touch activated 10-40 vdc time delay switch for operation of Headhunter Adder Kits, or single station Royal Pumps.

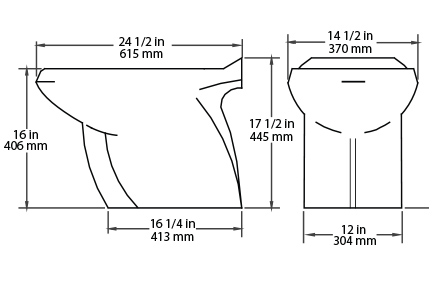

- Dimensions: 24 1/2”(615mm)L -14 1/2”(356mm)W -17 1/2”(445mm) H / Rim
- Inlet: 1inch (26mm)
- Outlet (pipe) : ID 1-1/2inch
- Outlet (Hose): ID 1-7/8
- Colors: White, Bone , Sand, Black
- Trim: Chrome, Gold
